Description
The

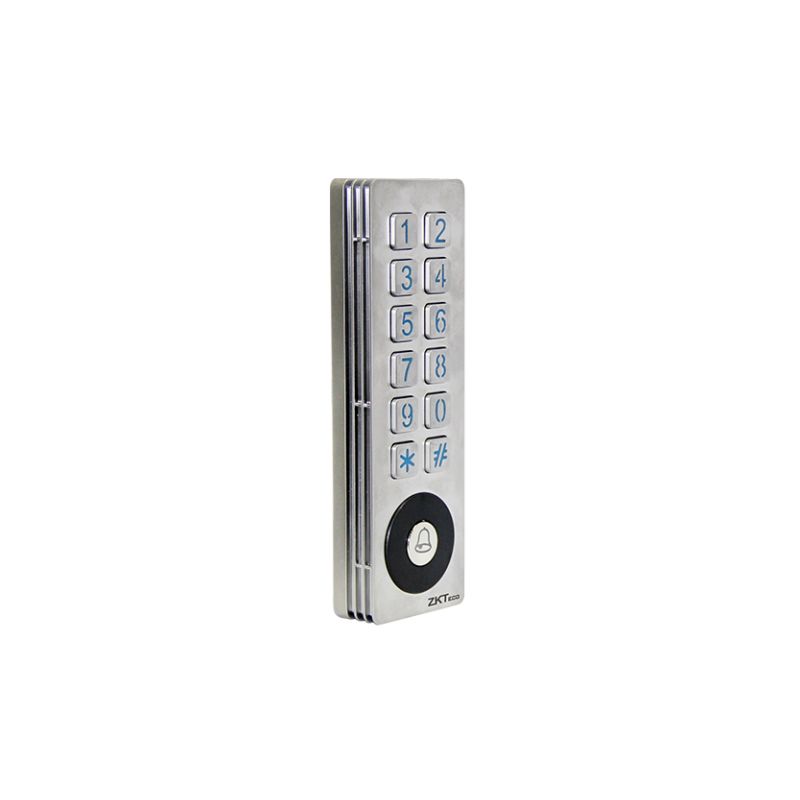

SKW-PRO-V1-1 is a standalone access control device and card reader manufactured by ZKTeco. It is designed for use as either a primary access control unit with an integrated controller or as a simple reader connected to a separate control panel.
Key Features
- Identification Methods: The device supports access via EM (125KHz) proximity cards and/or a 4- to 6-digit PIN.
- User Capacity: It can store up to 5,000 users and 5,000 cards/passwords.
-
Integrated Controller: The unit includes an integrated controller with interfaces for essential access components:
- One relay (for lock control).
- Door sensor input.
- Exit button input.
- Doorbell output.
- Tamper alarm.
- Durability: It features a metal, anti-vandal case and an IP65 ingress protection rating, making it suitable for outdoor installation.
- Compatibility: When used as a reader, it communicates with compatible ZKTeco control panels (such as the C3, InBio, and Atlas series) via the Wiegand 26/34 protocol.
Model Variations
The SKW Series includes several variations based on form factor and card technology:
- SKW-V: The "V" denotes a vertical design (Dimensions: 160 x 50 x 20.5 mm).
- SKW-H: The "H" denotes a horizontal design (Dimensions: 120 x 86 x 20.5 mm).
- PRO-V1/H1: Uses EM (125KHz) cards.
- PRO-V2/H2: Uses MF (Mifare 13.56MHz) cards.
The specific model
SKW-PRO-V1-1 indicates a vertical design using EM card technology.
- Stand-alone access control and access reader for controllers
- Identification via EM card, keycode and/or combinations
- Ability to 5.000 passwords/cards and 5.000 users
- Password from 4 to 6 digits
- Integrated controller (door sensor, push button and relay)
- Configurable actuation times
- Communication with controller via Wiegand 26/34
- Compatible with ZK-C3, ZK-INBIO, ZK-SRB-DM10 and ATLAS Series
- Vertical design
- Suitable for exterior IP65
- Antivandal
